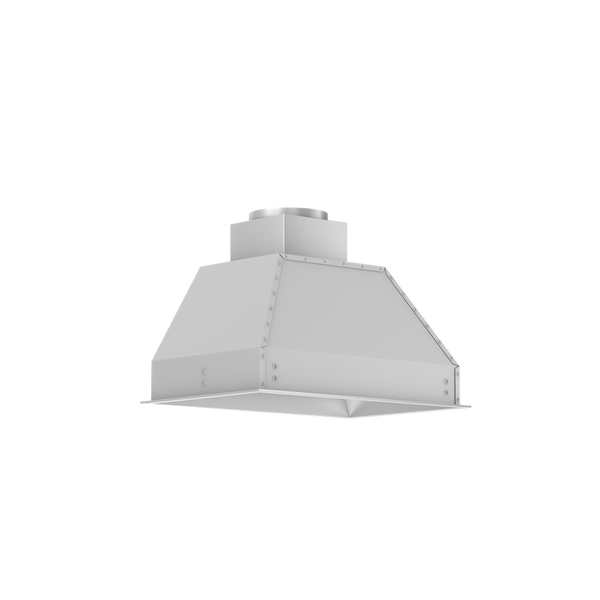

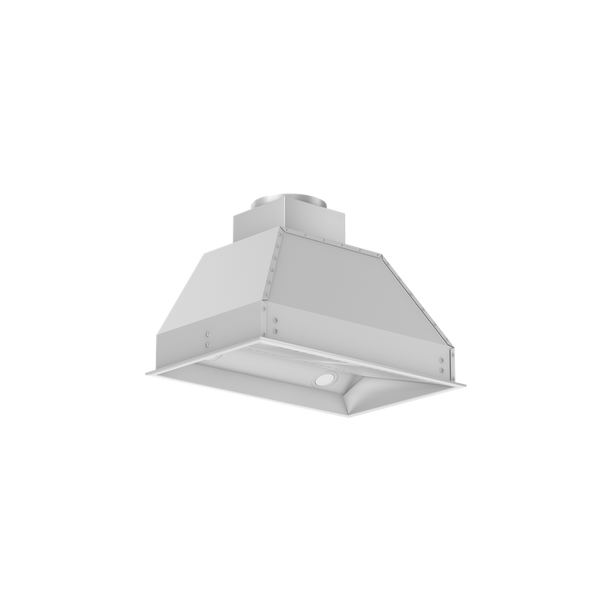

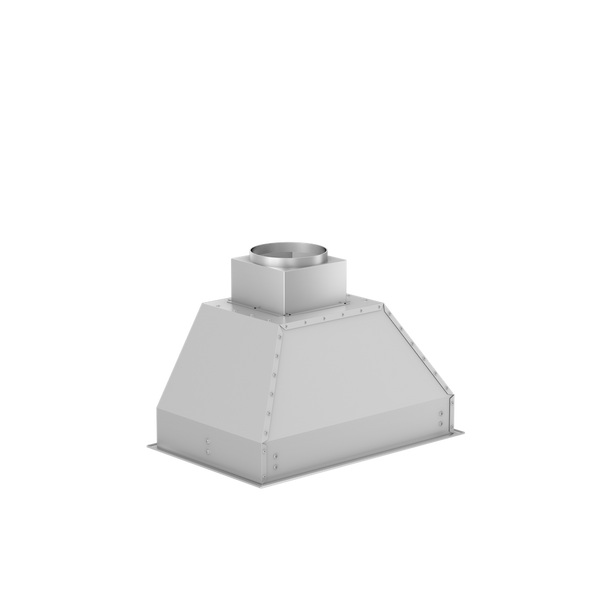

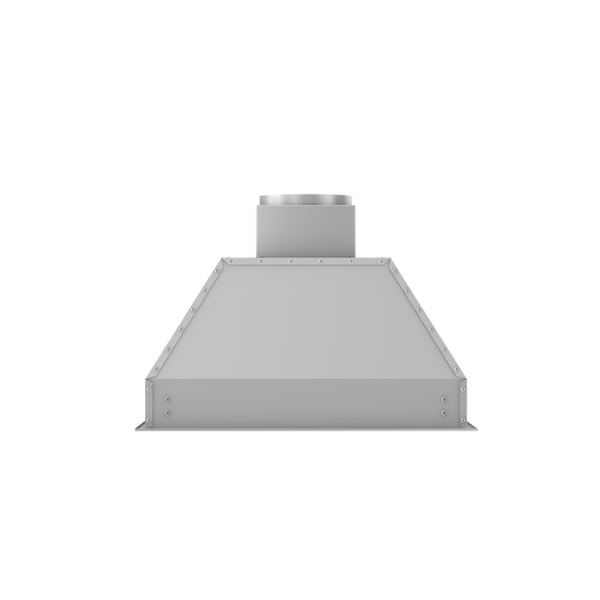

ZLINE 28 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-28)

Fathers Day Promo (6.3 - 6.24)

SKU: 698-28

$599.99

MAP: $749.99

PMAP: $599.99

The ZLINE 28 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (698-28) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

This product contains many unique features such as:

  • Integrated Insert Design - This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
  • Corrosion-Resistant Stainless Steel - Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
  • Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
  • Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area

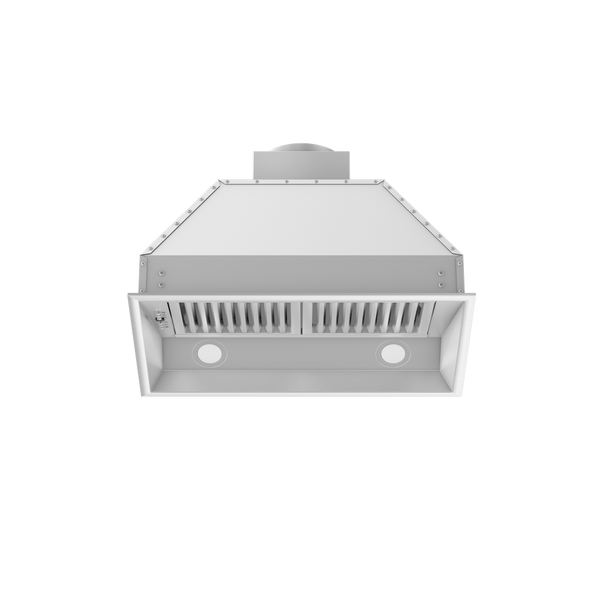

  • Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
  • Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
  • LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
  • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
  • Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty

Specifications|||

  • Brand: ZLINE Kitchen and Bath

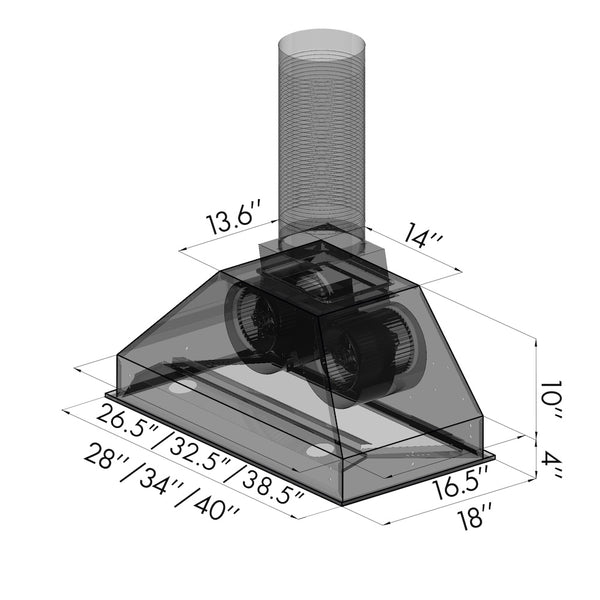

Dimensions:
  • 698-28: 28" W x 18" D x 14.2" H
  • 698-34:34" W x 18" D x 14.2" H
  • 698-40: 40" W x 18" D x 14.2" H
  • 698-46: 46" W x 18" D x 14.2" H
Venting Size:
  • 28 inch: 6" Round Outlet
  • 34 inch and larger: 8" Round Outlet
Max CFM:
  • 698-28: 400 CFM
  • 698-34: 700 CFM
  • 698-40: 700 CFM
  • 698-46: 700 CFM
Lighting:
  • 698-28: 2 Directional LED Lights (3-Watt)
  • 698-34: 3 Directional LED Lights (3-Watt)
  • 698-40: 3 Directional LED Lights (3-Watt)
  • 698-46: 4 Directional LED Lights (3-Watt)
Airflow (Q/L/M/H):
  • 28 inch: 120/240/320/400
  • 34 inch and larger: 280/420/560/700

Motor: High Performance 4-Speed Motor

Voltage: 110V/60HZ

Speeds: 4 Speeds

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)

Material: Stainless Steel

Mount Type: Range Hood Insert

Filters: Stainless Steel Baffle Filters (Dishwasher Safe)

Warranty: 3 Year Parts Warranty

Certifications: ETL Certified

Installation and User Manual: Click Here to View

Ship Type - PARCEL

Total Weight of All Boxes - 47.1 Lbs

# of Boxes Shipped - 1
