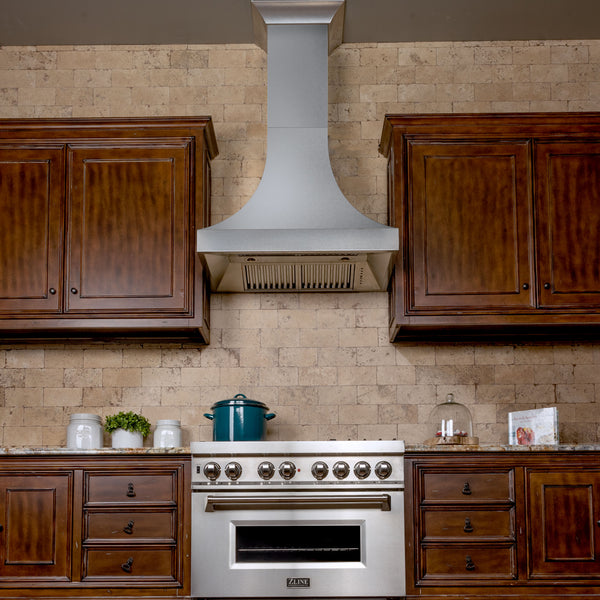

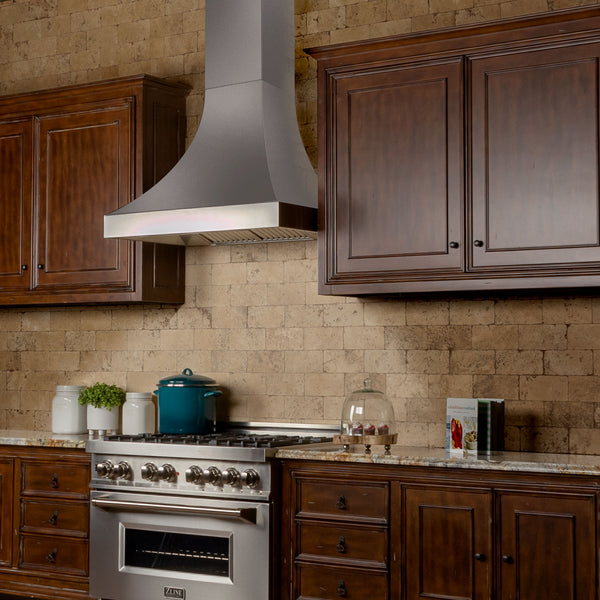

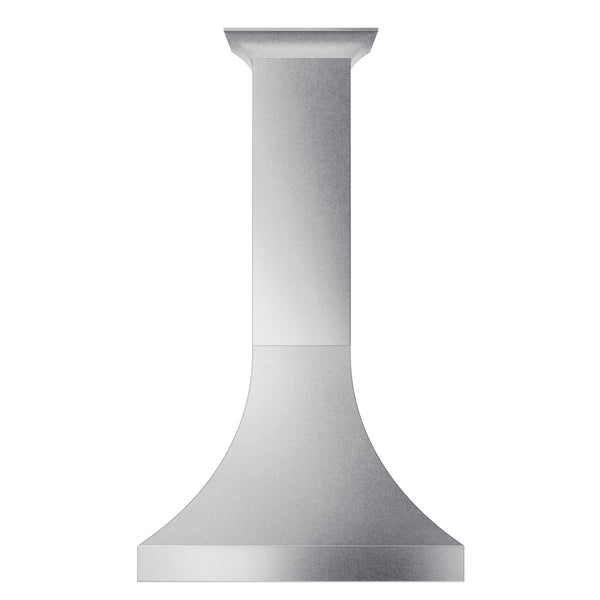

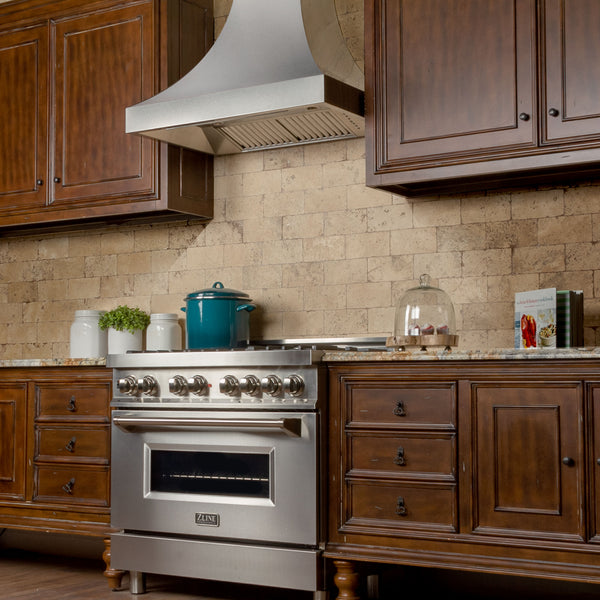

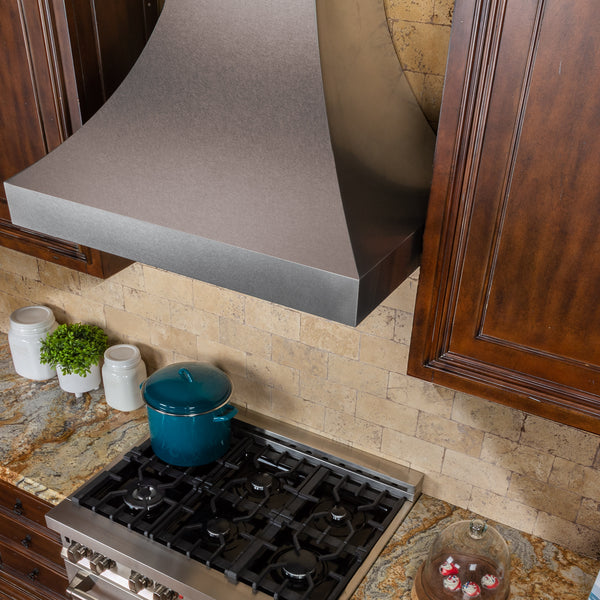

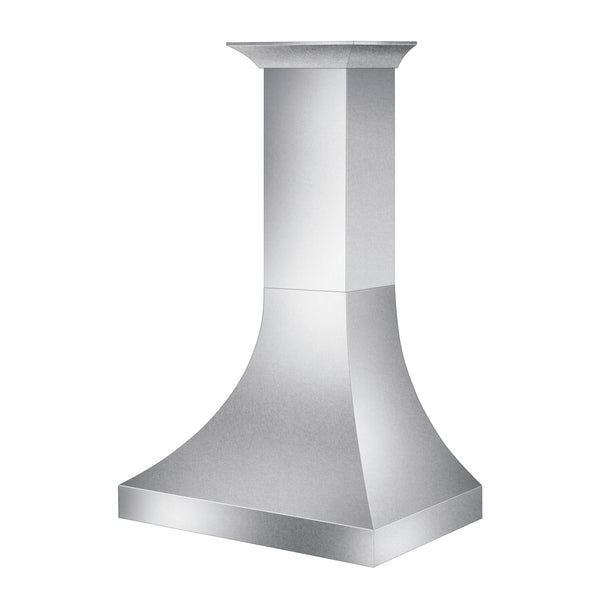

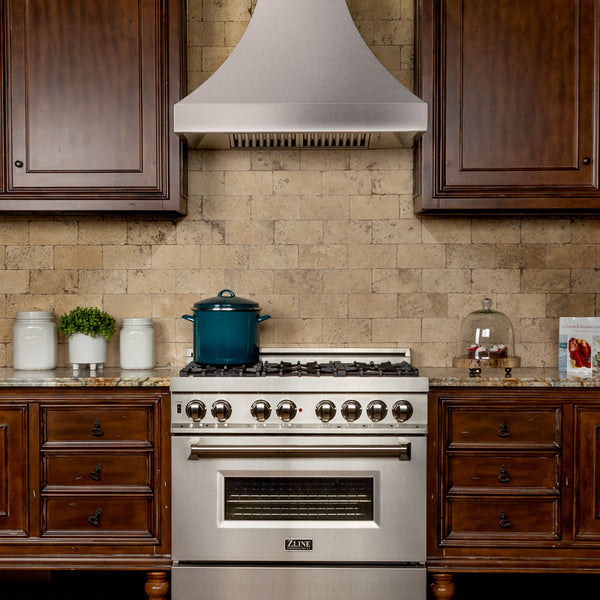

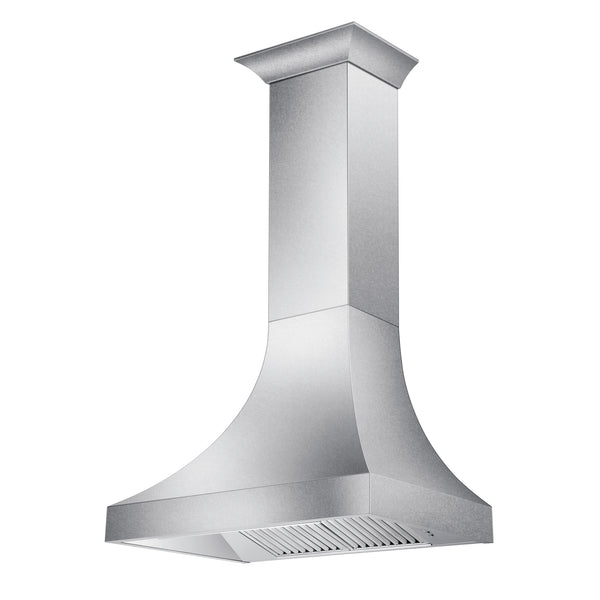

ZLINE 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30)

SKU: 8632S-30

$2,149.99

Available from:

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" Designer Series Satin Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30) provides a professional culinary experience by pairing built to last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen's capability.

This product contains many unique features such as:

  • Non-directional Satin stainless steel is an everlasting finish that is corrosion, smudge, and fingerprint resistant
  • Easy-to-use push button controls let you easily control fan speed and lighting
  • 4-Speed fan control (260/340/420/500 CFM) to choose the appropriate air flow for your cooking situation
  • 500 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
  • Fixed vent with ductwork that easily connects to the top of the range hood for external venting

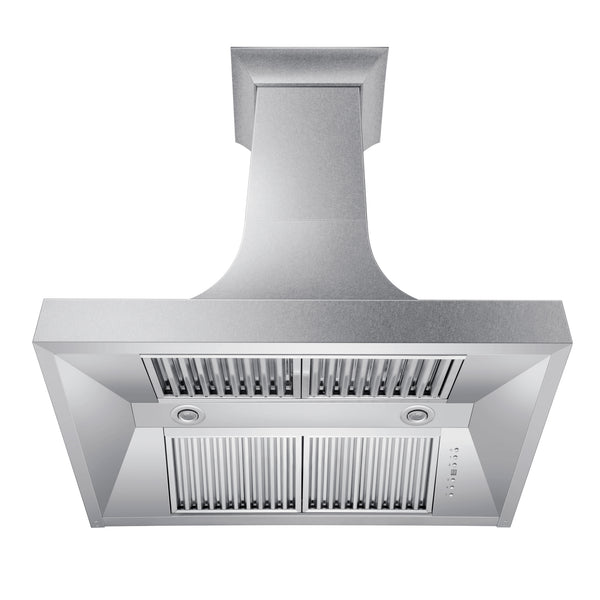

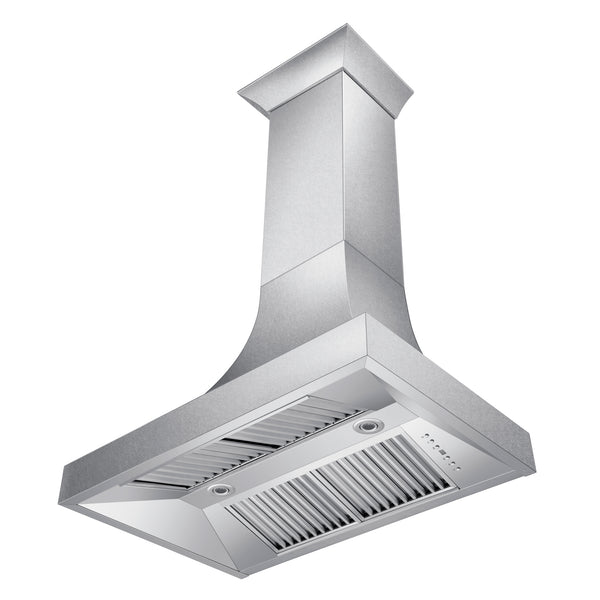

  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • Please note the position of a grill lid can block the range hood filters and decrease range hood performance. We recommend moving the range hood to accommodate your grill lid or ensure range hood depth will surpass the size of the grill and mounted 38-42 inches above the grill.
  • 3 year parts warranty, life-time motor warranty
  • This product ships in multiple boxes and will require minimal assembly upon arrival

Specifications |||



Brand: ZLINE Kitchen and Bath
Dimensions:

  • 8632S-30: 30 in. W x 23.75 in. D x 26.75 in. H
  • 8632S-36: 36 in. W x 23.75 in. D x 26.75 in. H
  • 8632S-48: 48 in. W x 23.75 in. D x 26.75 in. H

Chimney:

  • 11.75" W x 10.75" D x 47.25" H - Fits ceilings 8.5- 12 ft. Must custom cut.
  • Includes Crown Molding.

 Venting Size:

  • 8632S-30: 6" Round Outlet
  • 8632S-36: 6" Round Outlet
  • 8632S-48: 8" Round Outlet

 Airflow (Q/L/M/H):

  • 8632S-30: 260/340/420/500
  • 8632S-36: 260/340/420/500
  • 8632S-48: 280/420/560/700

 Lighting:

  • 8632S-30: 2 Directional LED Lights (3-Watt)
  • 8632S-36: 2 Directional LED Lights (3-Watt)
  • 8632S-48: 4 Directional LED Lights (3-Watt)

Voltage: 110V/60HZ

Motor:

  • 8632S-30: High Performance 500 CFM/4-Speed Motor
  • 8632S-36: High Performance 500 CFM/4-Speed Motor
  • 8632S-48: High Performance 700 CFM/4-Speed Motor

Mount Type: Wall Mounted

Speeds: 4 Speeds

Material: Satin Stainless Steel

Filters: Stainless Steel Baffle Filters (Dishwasher Safe)

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)

Warranty: 3 Year Parts Warranty

Features:

  • Model No. 8632S-30, 8632S-36, 8632S-48
  • Chimney Extension: Model No. KBUU-E

UPC:

  • 8632S-30: 817299029922
  • 8632S-36: 817299029939
  • 8632S-42: 817299029946
  • 8632S-48: 817299029953

Certifications: ETL Listed

Installation Manual: Click Here to View on ZLINE's Website
